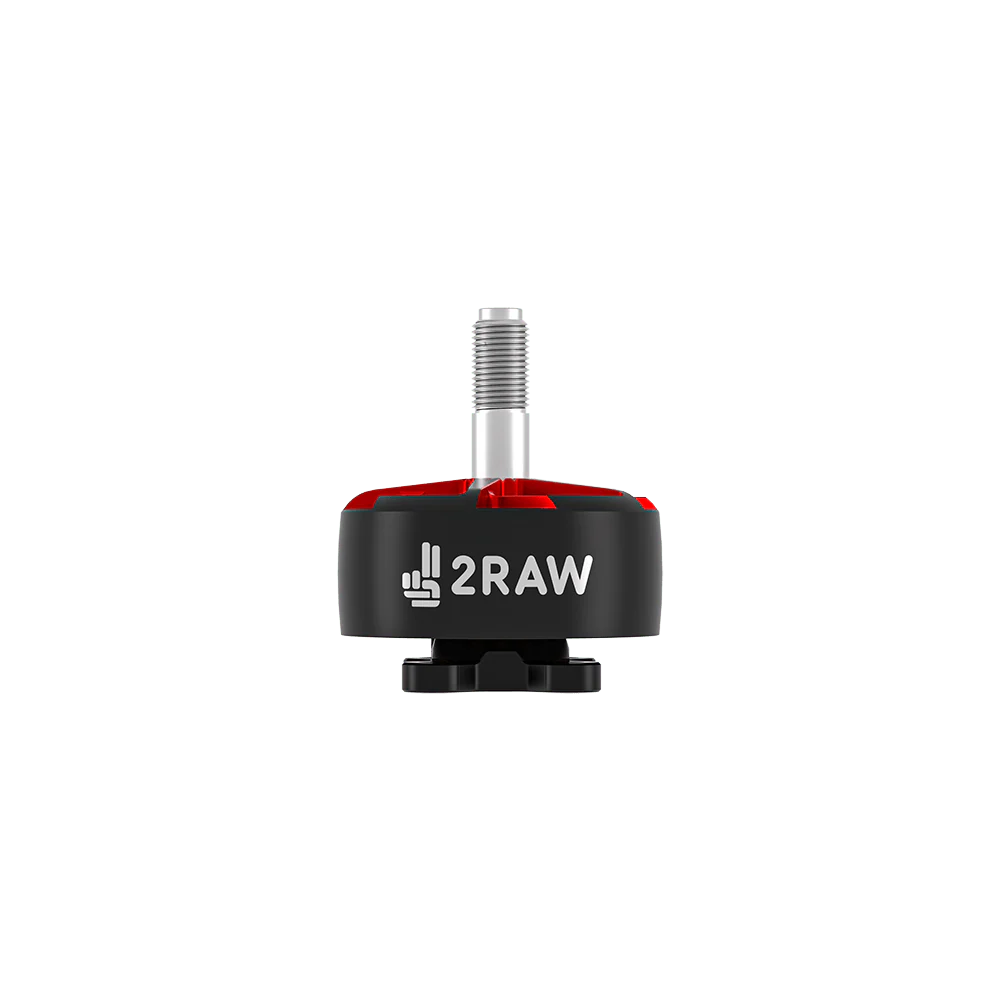

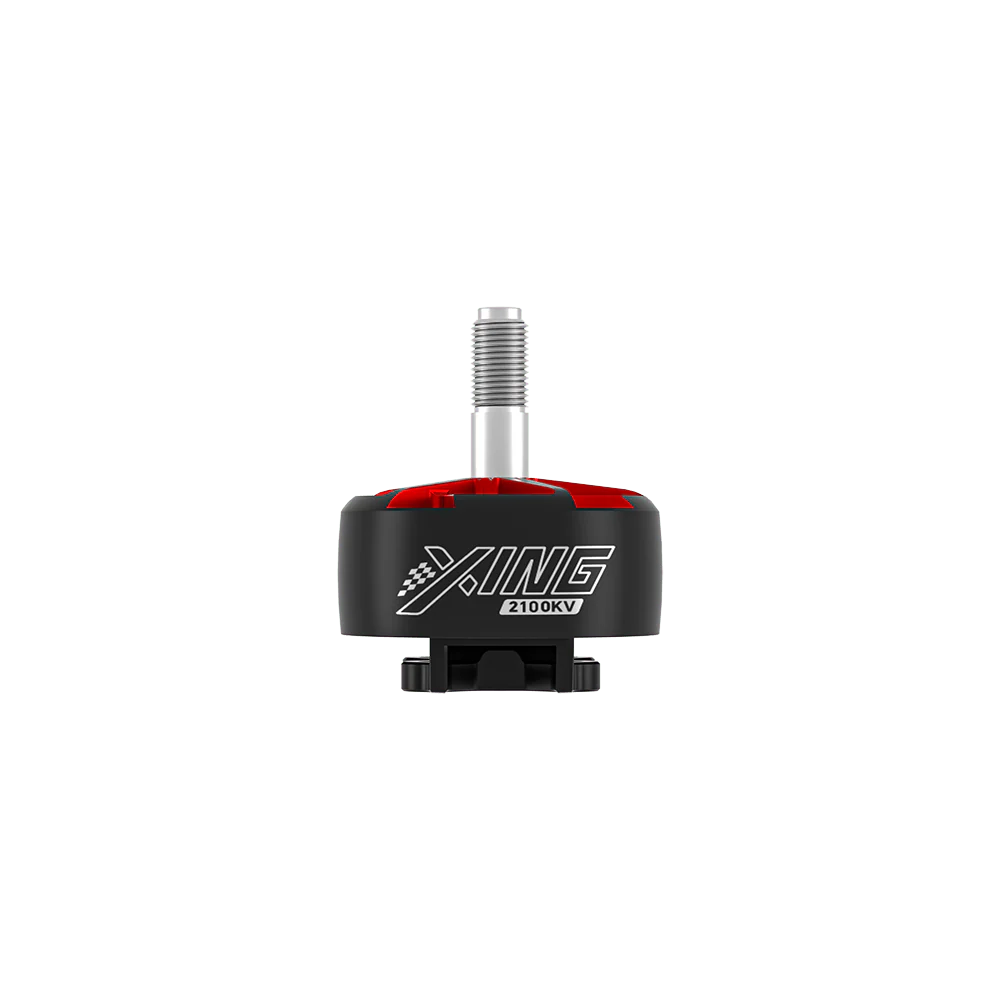

R5 2207 2100KV Race FPV Motor
This motor is specially designed for Race drones, such as the Mach R5 Racing drone.
The smooth, reliable and powerful motors were upgraded, and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center-slotted N52H curved arc magnets were introduced to drastically reduce the response time of the motor!
Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!
Specifications:
Model: R5 2207 Motor
KV: 1590KV / 2050KV / 2100KV
Weight(included wire): 33.8g (1590KV)/34.6g (2050KV/2100KV Purple, Blue)/34.2g(2100KV Red)
Dimension: 28.18*31.5mm(1590KV) / 28.2*31.5mm (2050KV/2100KV)
Interphase Resistance: 95.6mΩ(1590KV) / 56.3mΩ (2050KV/2100KV Purple, Blue)/ 55mΩ(2100KV Red)
Input Volts: 32V(1590KV) / 25.2V (2050KV/2100KV)
Peak Current: 38.62A / 49.53A / 49.49A
Max Watt: 1221.6W / 1166.4W / 1167.5W
Mounting Holes: 16*16 φ3mm
Shaft Diameter: 5mm
Shaft Protruding Length: 12.5mm
Lead: 150mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single-strand copper winding
Packing List
1 x R5 2207 Brushless Motor
4 x M3*8 screws
1 x M5 Flanged Nylon Insert Lock Nut
