NIDICI Affordable Series Motor, is designed to provide high-quality performance at an economical price. This series combines cost-effectiveness with reliable power, making it an excellent choice for hobbyists and enthusiasts who seek value without compromising on quality.



KV: 900KV

Weight(included wire): 60.4g

Dimension: Ф33.55*27.65mm

Interphase Resistance: 65mΩ

Input Volts: 24V

Peak Current: 43.86A

Max Watt: 1018W

Mounting Holes: 19*19 φ3mm

Rotor Specifications: Segmented bell

Shaft Diameter: 5mm

Shaft Protruding Length: 15.15mm

Lead: 260mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ11*5*5

Winding: Single Strand copper winding

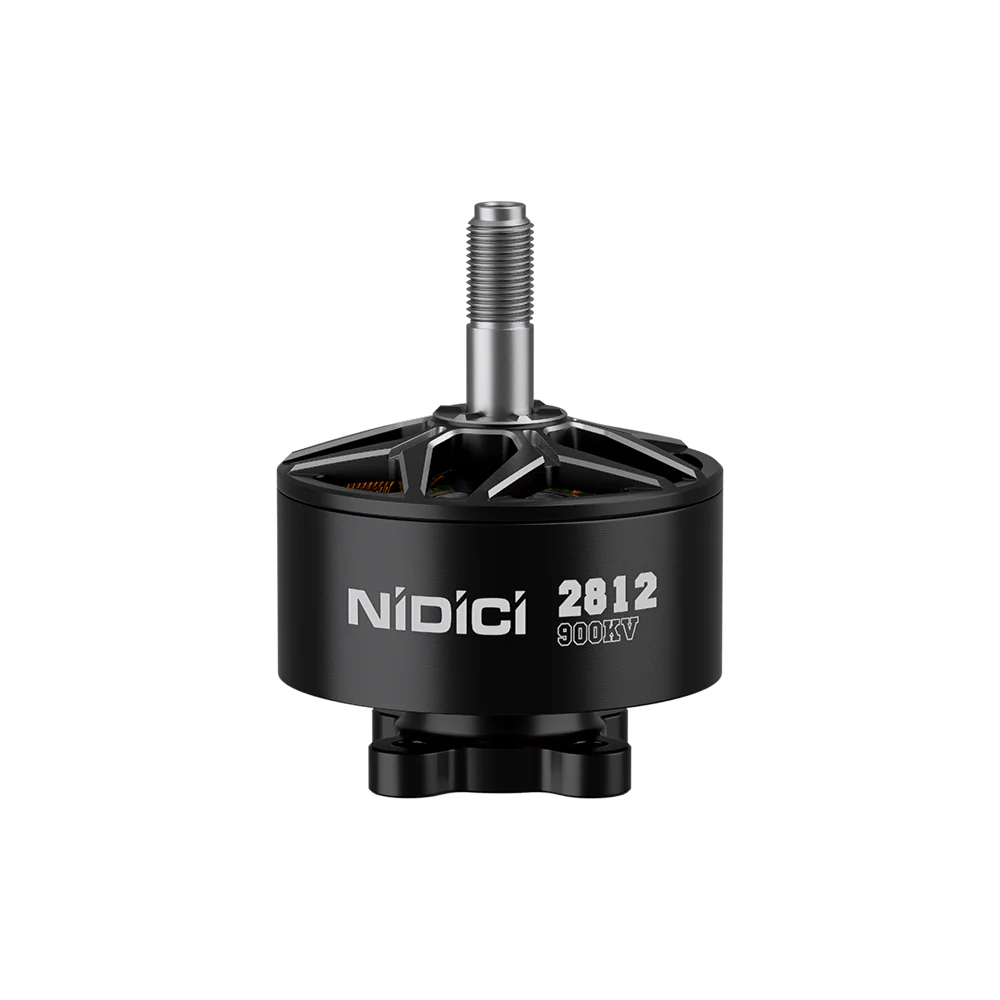

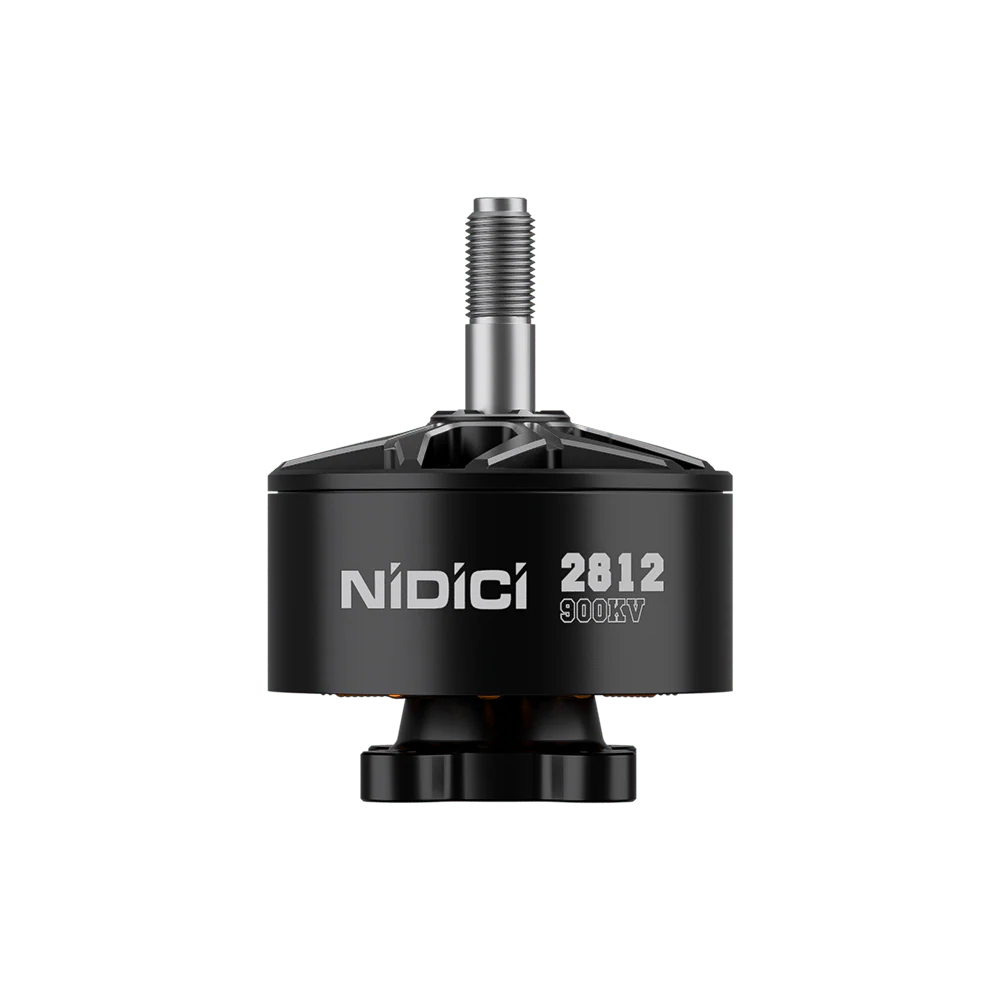

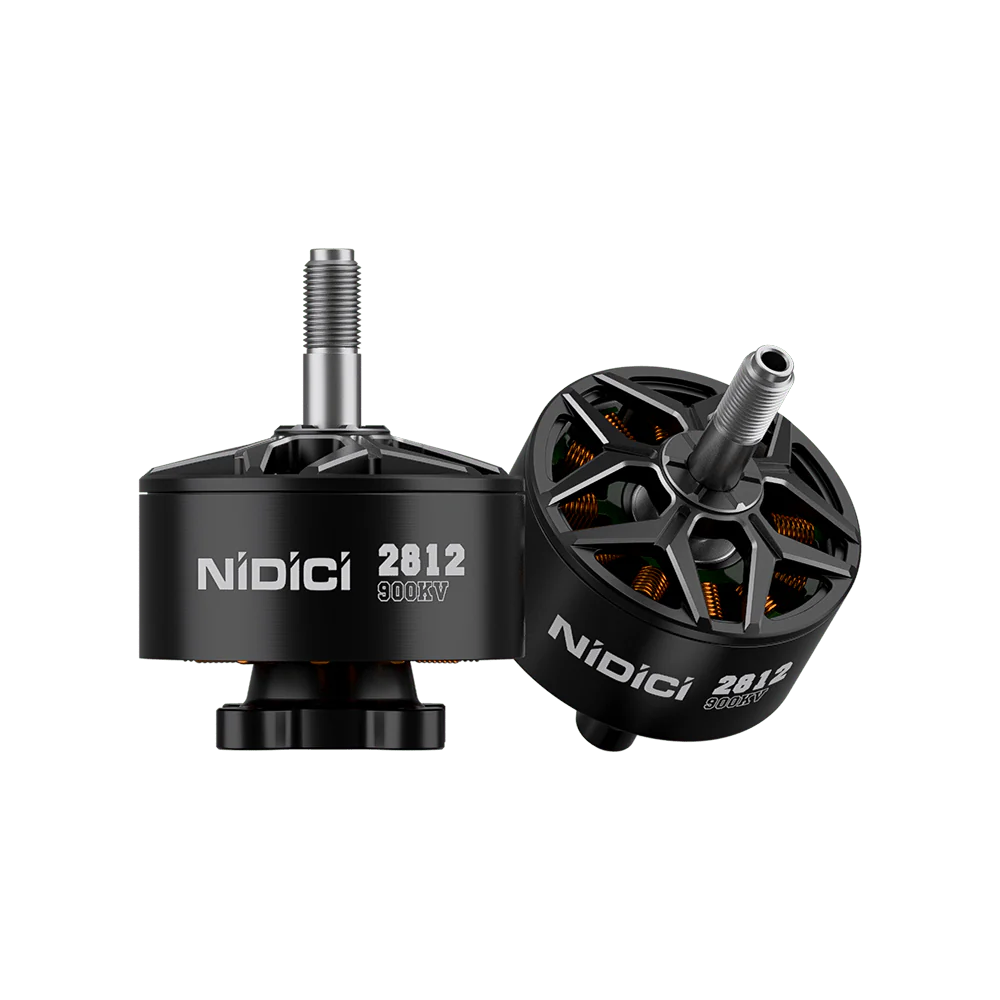

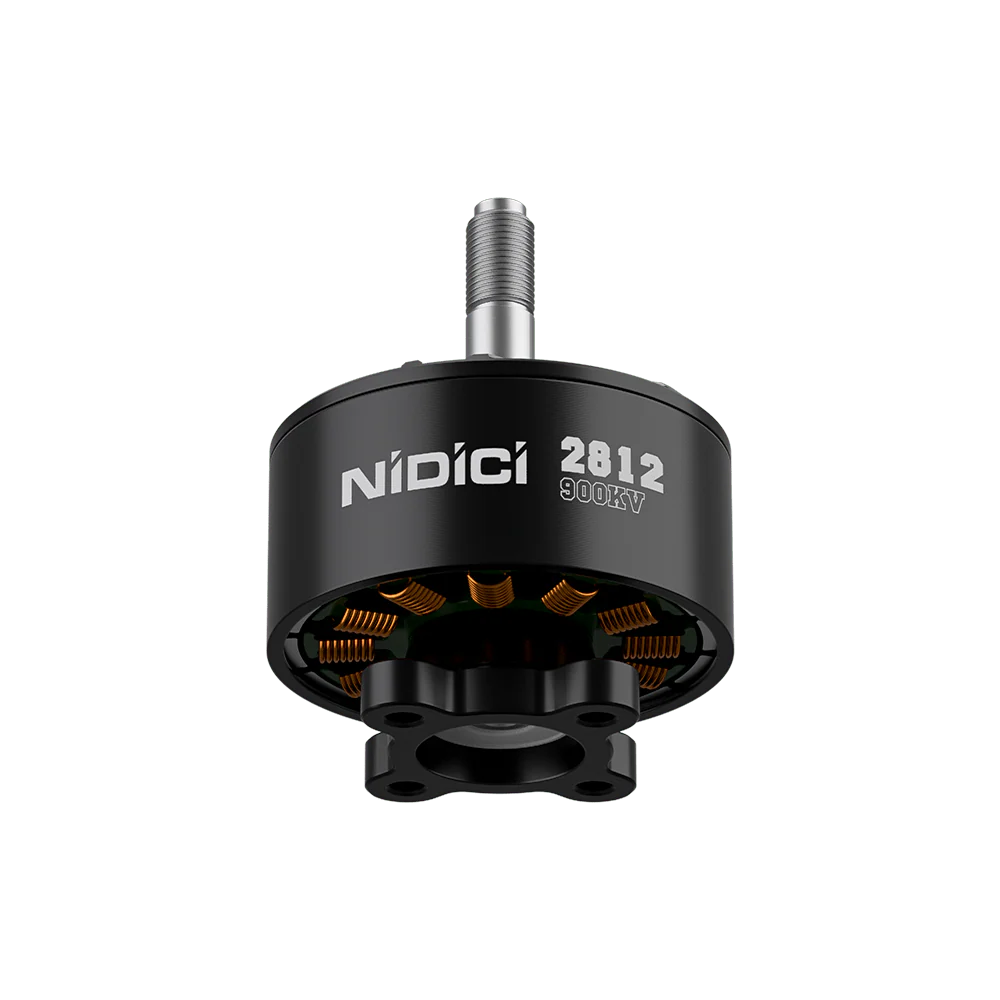

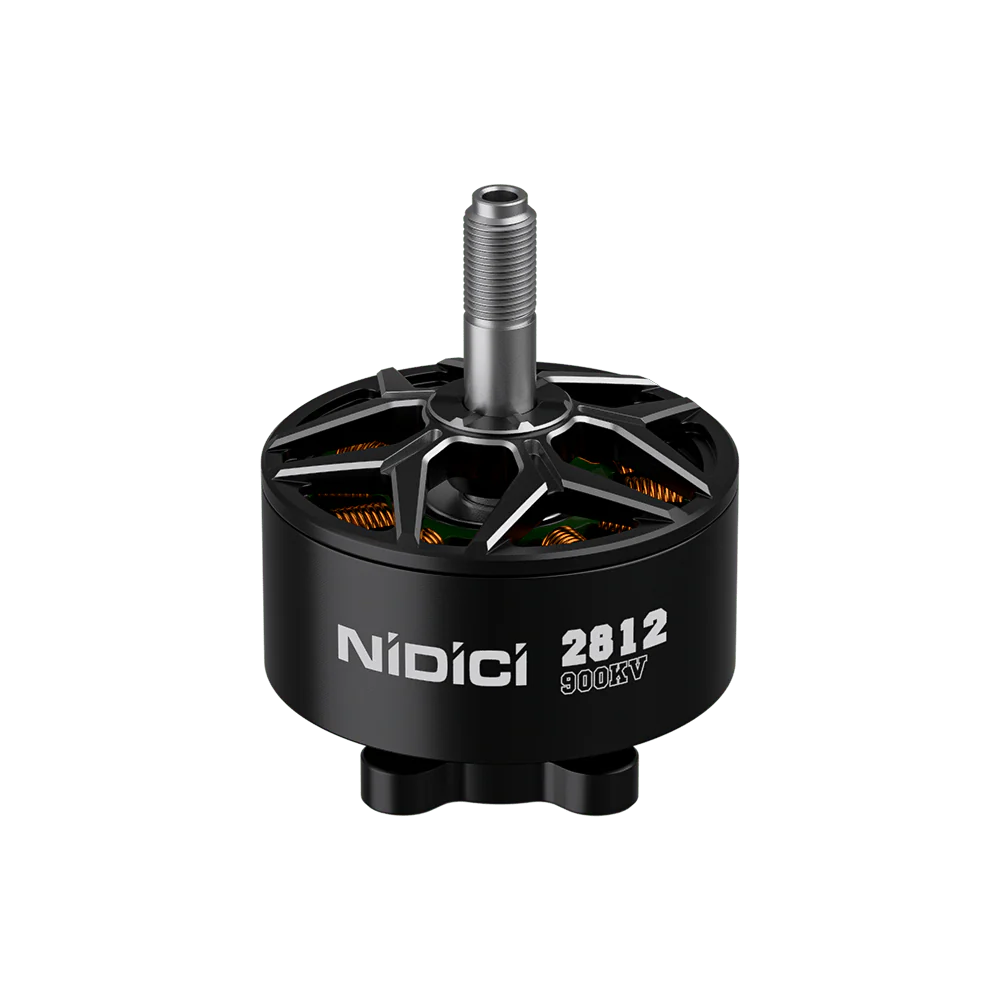

1 x NIDICI 2812 900KV Brushless Motor

4 xM3*10 screws

1 x M5 Flange Nut
