Nazgul XL5 ECO V1.1 6S ANALOG ReadyFly Bundle
ReadyFly Content Optional
-
FPV Drone (optional for DJI Radio Controller, TBS or ELRS)
-
FPV Goggles (flagship or budget friendly)
-

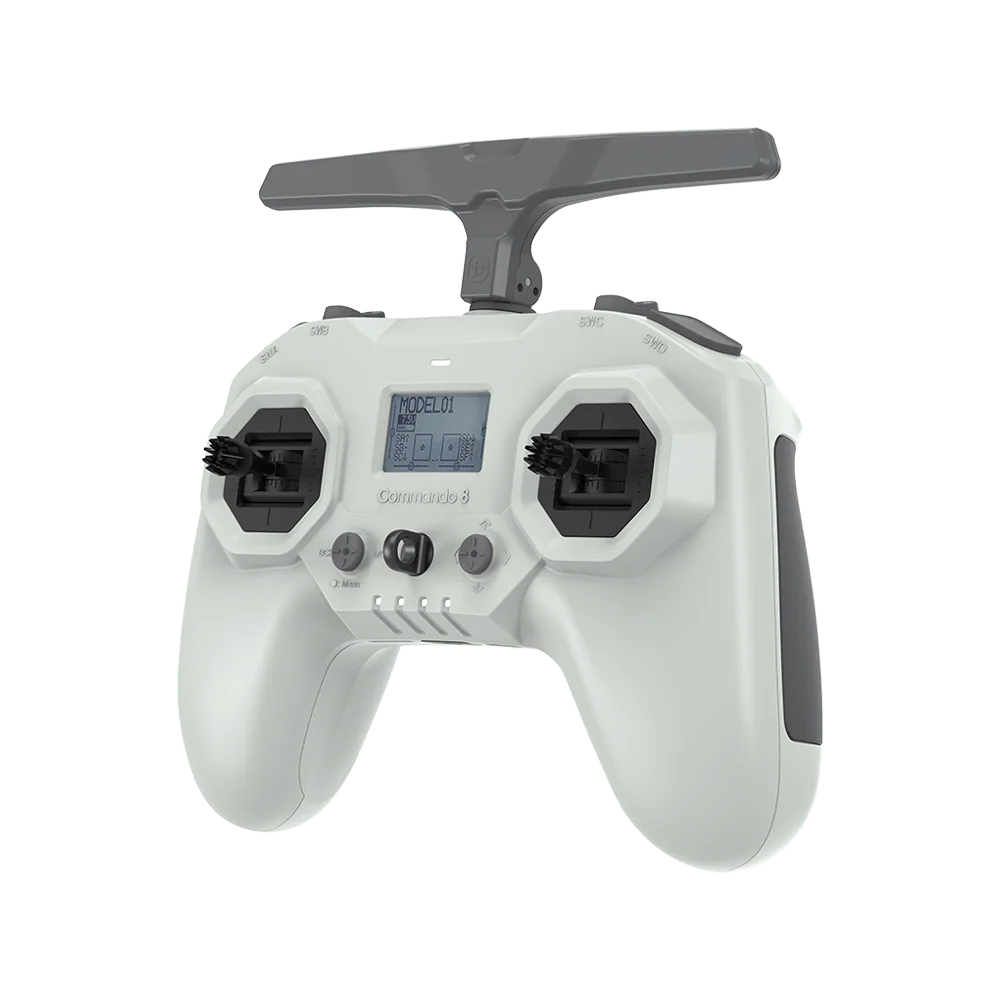

Radio Controller (optional ELRS Controller)
-

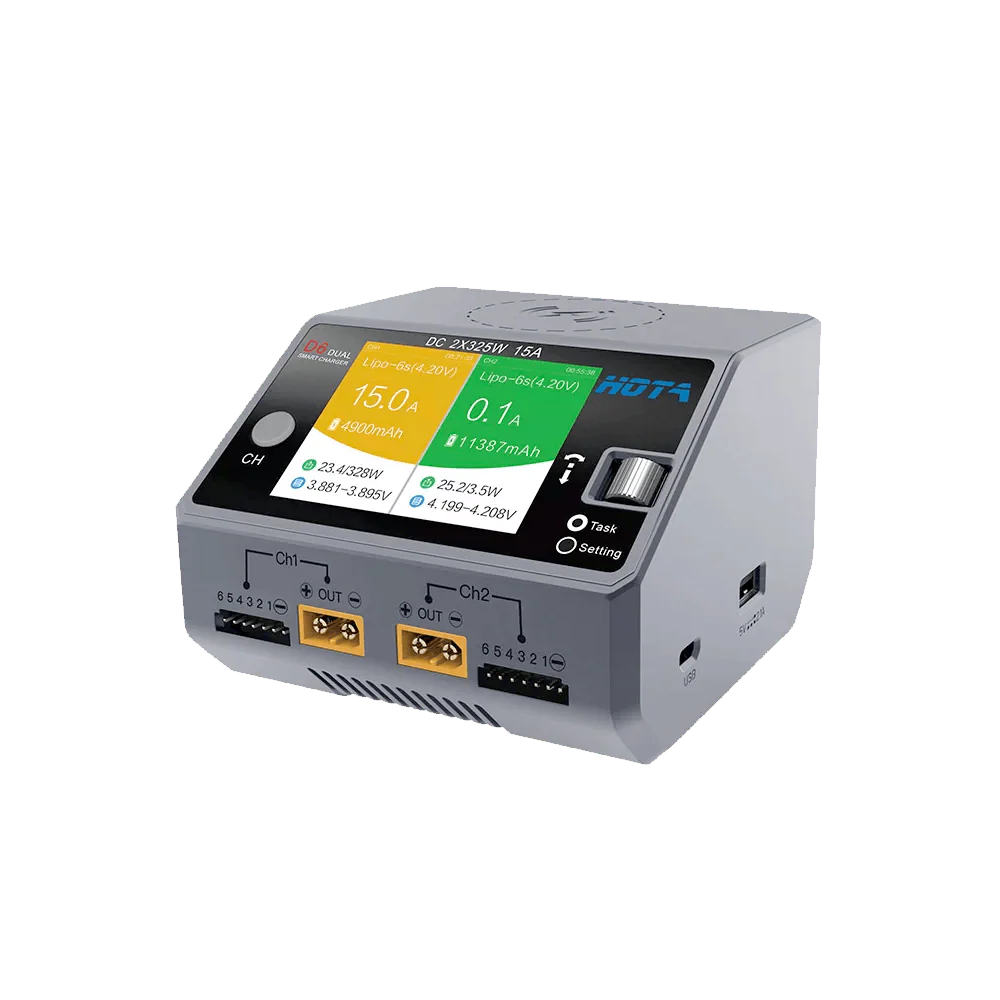

Charger (dual charger or USB PD Charger)
-

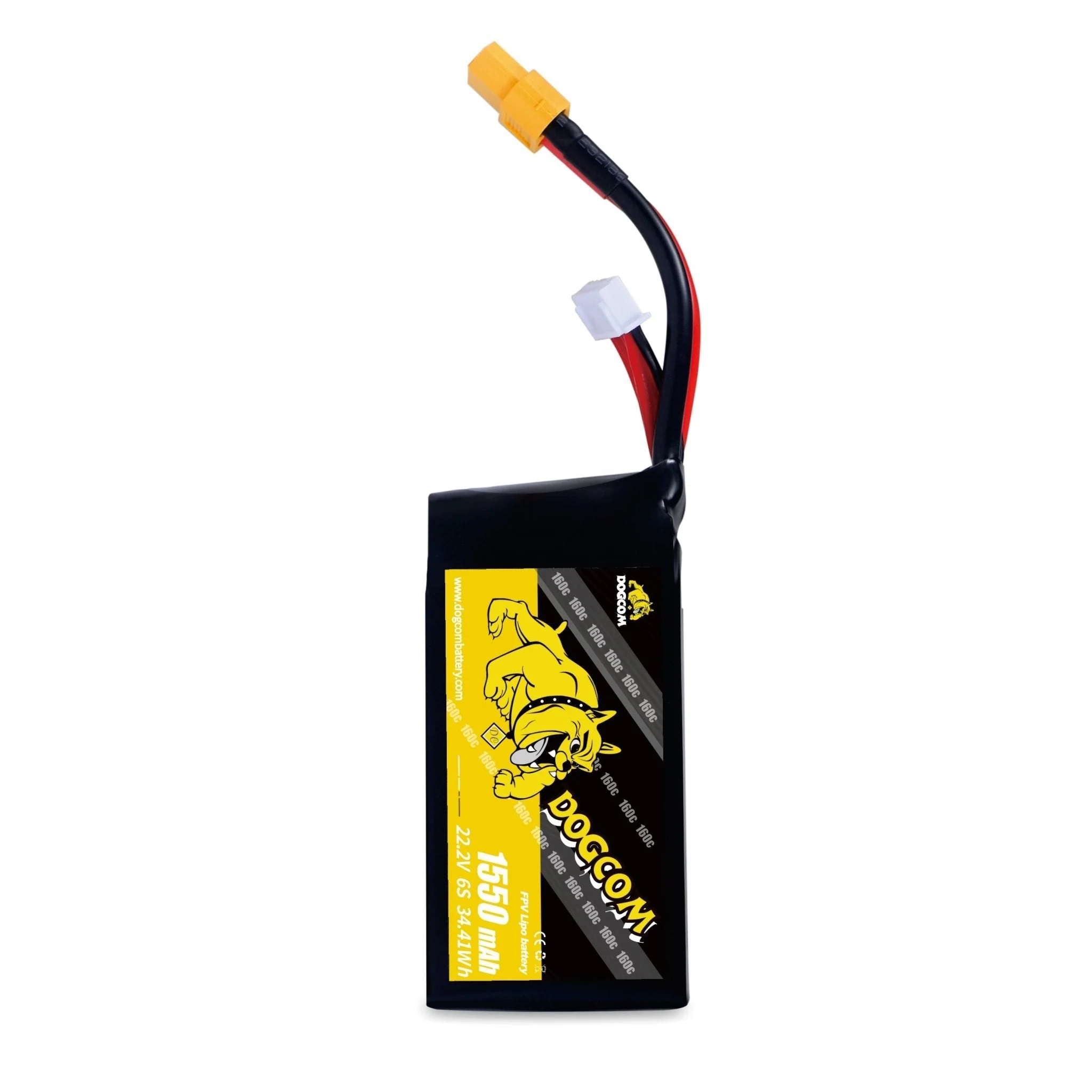

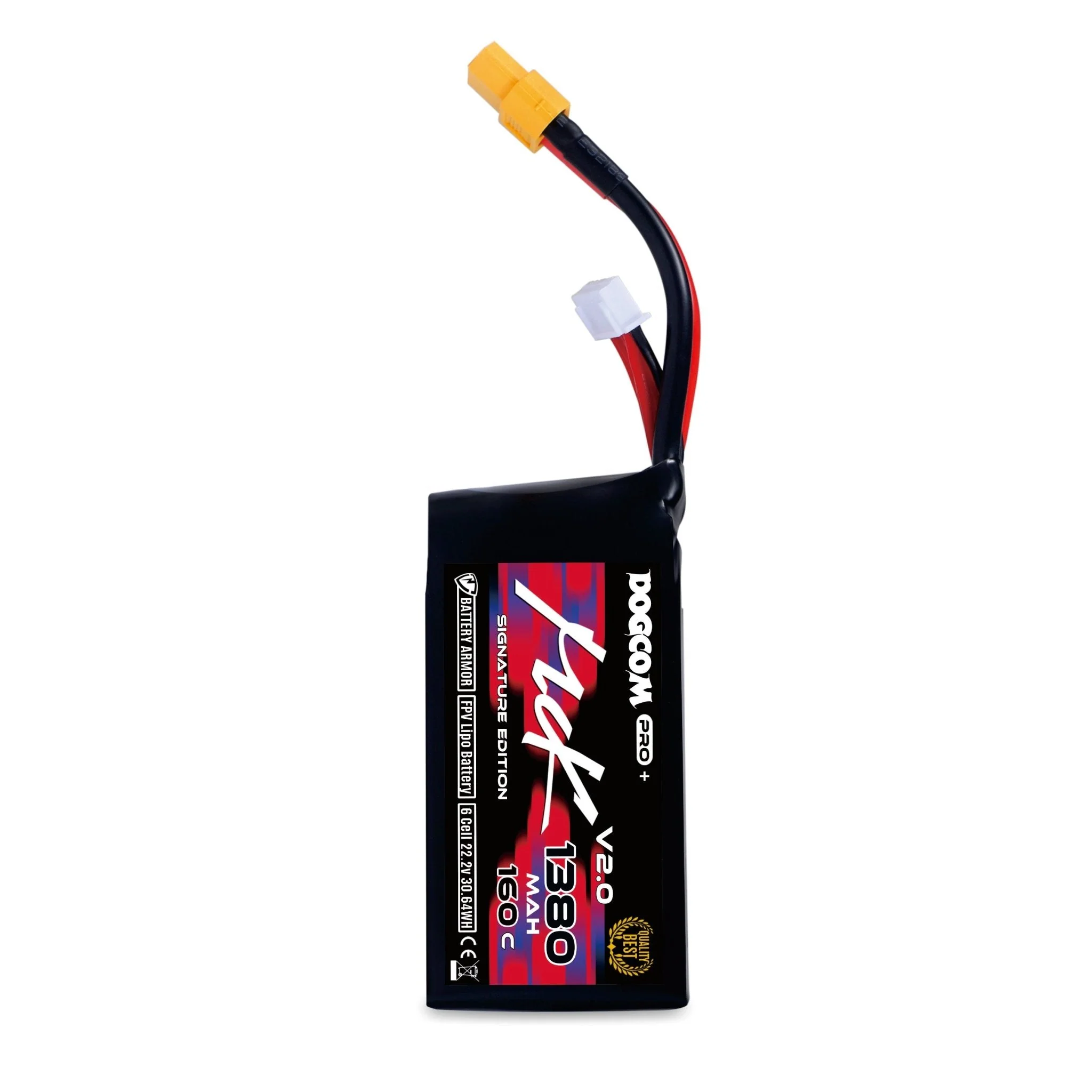

Batteries (more mAh = heavier but more flight time)
-
Battery Bag (for safe storage)
-

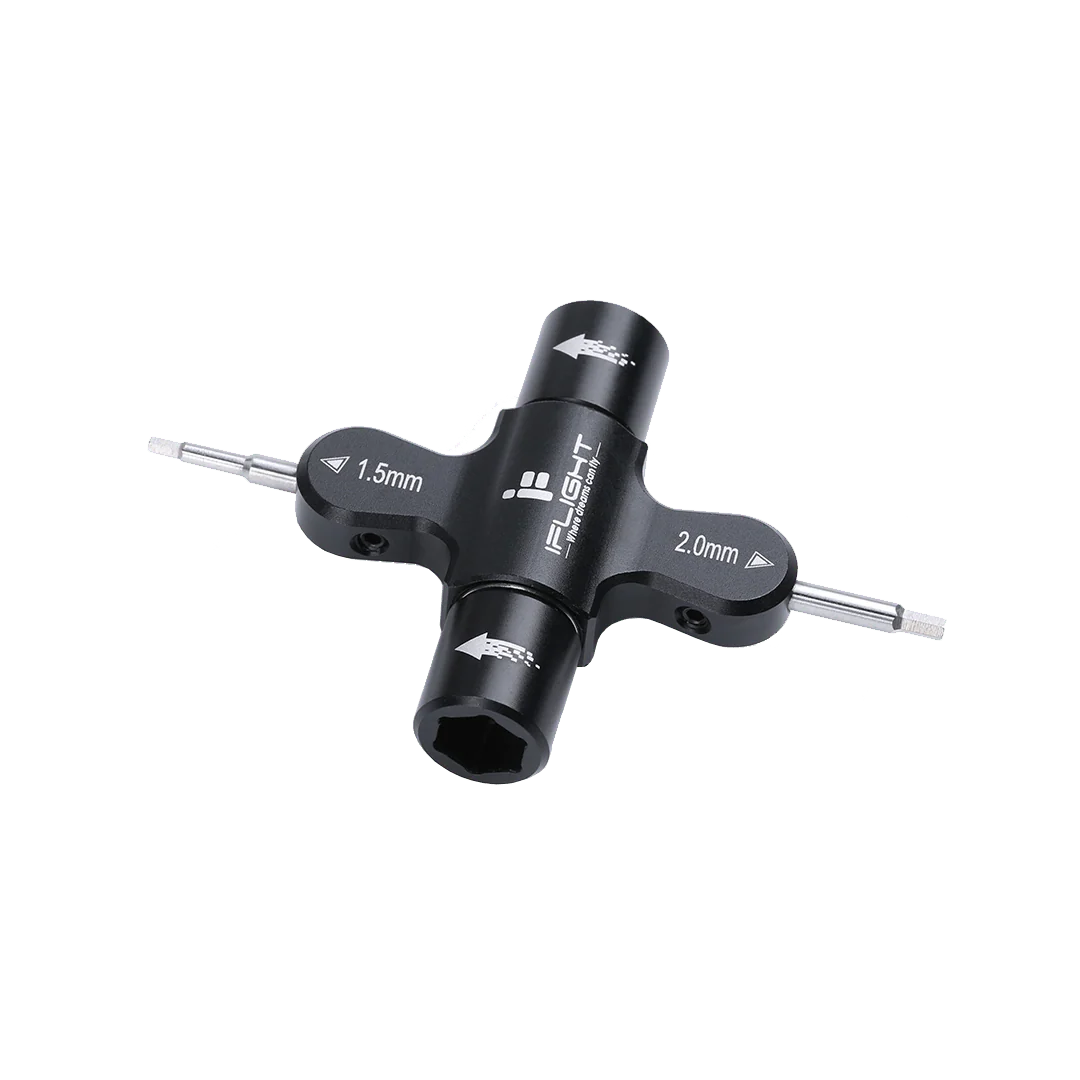

Prop Tool (to tighten propeller nuts)
-

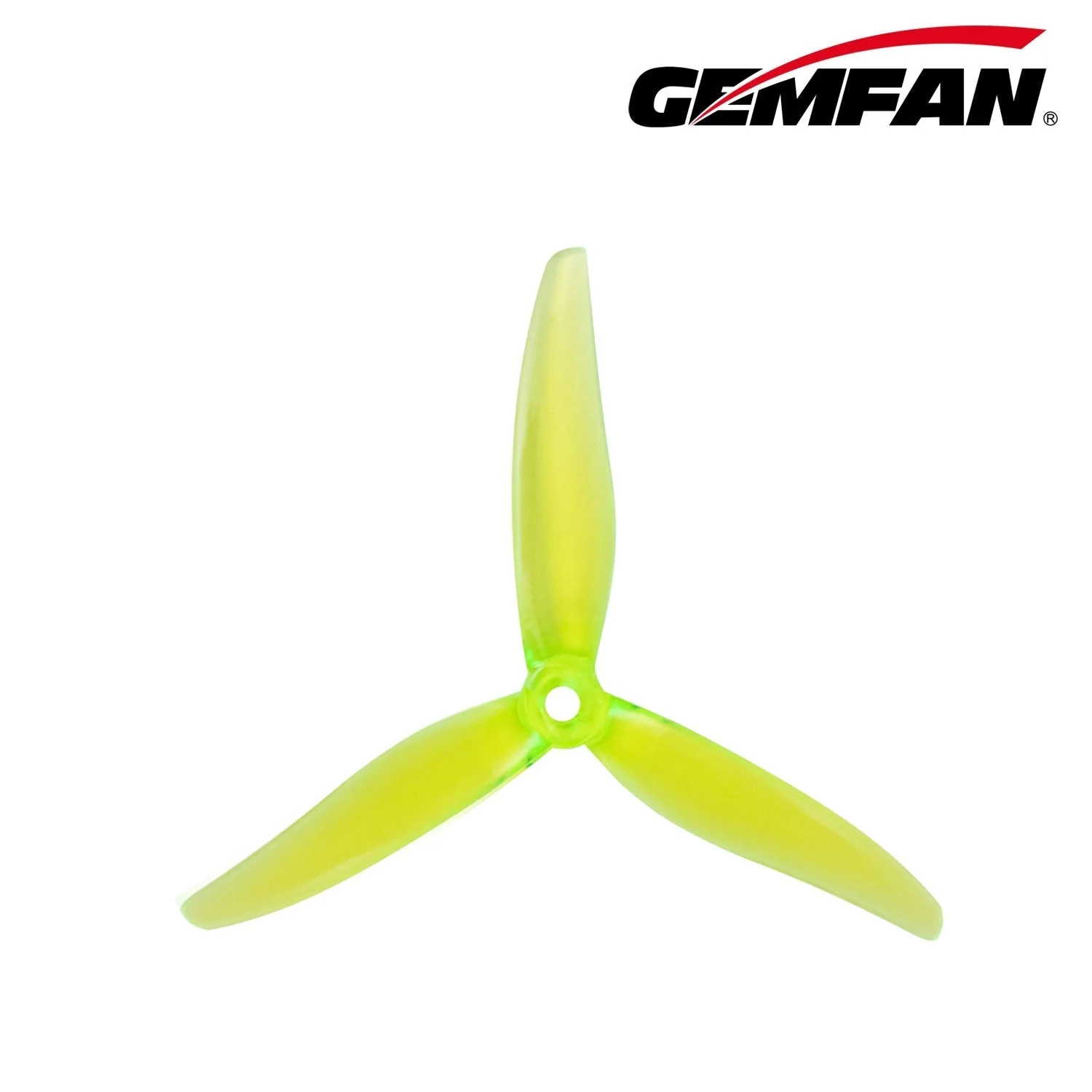

Propellers (spare sets)
Lightweight and Durable
A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.
Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Enhance user experience and streamline maintenance
Equipped with a built-in buzzer and receiver mount, convenient maintenance and adjustments to the receiver.
DIY customized space
Create your own personalized space with the flexibility of standard 20x20 and 30.5x30.5 mounting holes, ensuring compatibility with popular flight stacks and VTX systems available in the market. Tailor your setup to your liking and enjoy a seamless integration process with these versatile mounting options.
Specifications:
Product Name: Nazgul XL5 ECO 6S Analog
Geometry: True-X
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 4-IN-1 ESC
Video Transmission: BLITZ 1.6W VTX
Frame: 245mm wheelbase
Motor: XING-E Pro 2207 1800KV motors
Prop: Nazgul F5 propellers
Weight: 427g
Takeoff Weight: Approx. 652g (With 6S 1400mAh battery)
Dimensions (L×W×H): 173×173×34±2 mm
Diagonal Distance: 245mm
Max Speed: 190 km/h (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
Max Wind Speed Resistance: Level 7
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (Optional)
Video Transmission:
Product Name: BLITZ 5.8G 1.6W VTX
Output Power: 0-25-400-800-1600mw
Input Volts: 7-34V(2-8S)
Working Current: 25.2V，≤pit @20mA，≤25mw@65mA，≤400mw@130mA，≤800mw@150mA，≤1600mw@250mA
Transmission fre: 40CH(A-B-E-F-R)
Antenna Interface: MMCX
Mounting Hole: 30.5×30.5/Φ3mm
Weight: 18.9g (Antenna not included)
Dimensions: 38.5×38.5mm
Packing List:
1 x Nazgul XL5 ECO 6S Analog BNF
1 x Antennas
2 x Battery pads
2 x Nazgul F5 Prop(Pairs)
Changelog:
June 28, 2024: Battery Plug updated to fixed form. The drone upgraded to V1.1.
Notice:
All iFlight BNFs are tested before shipment to guarantee highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
