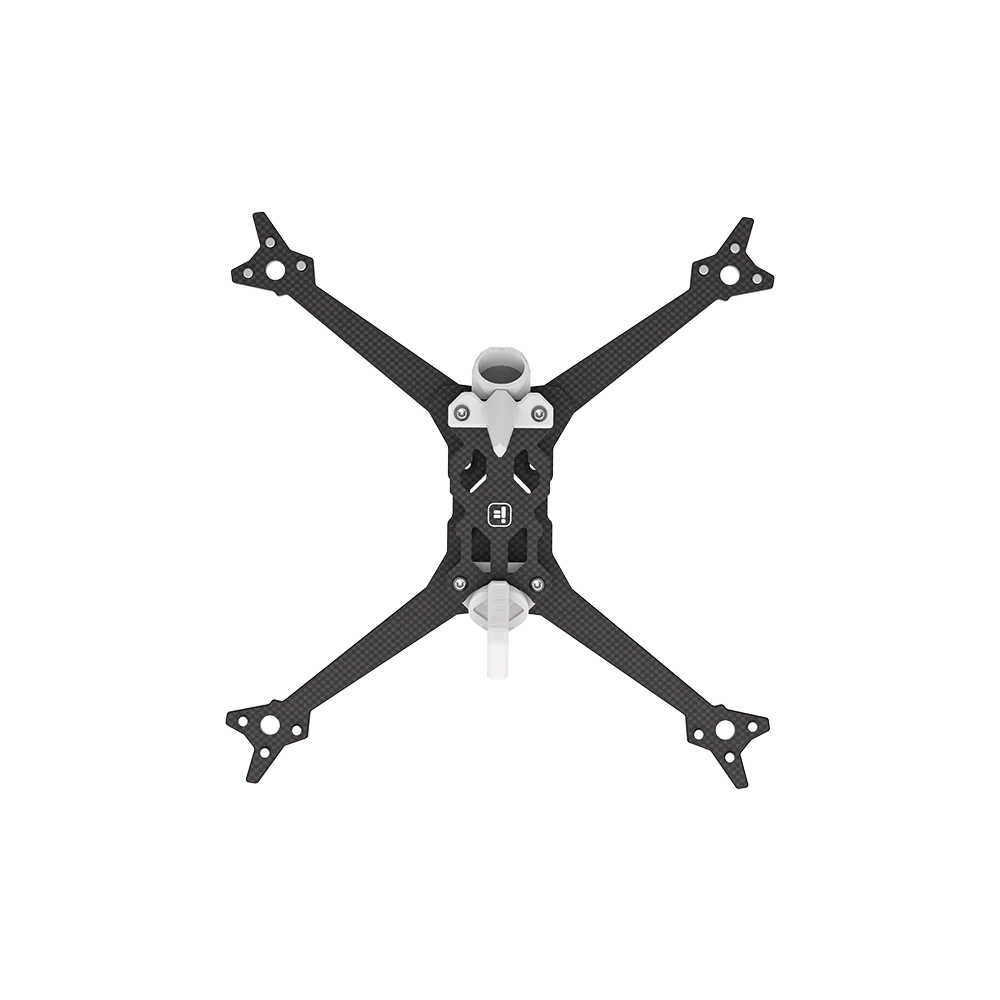

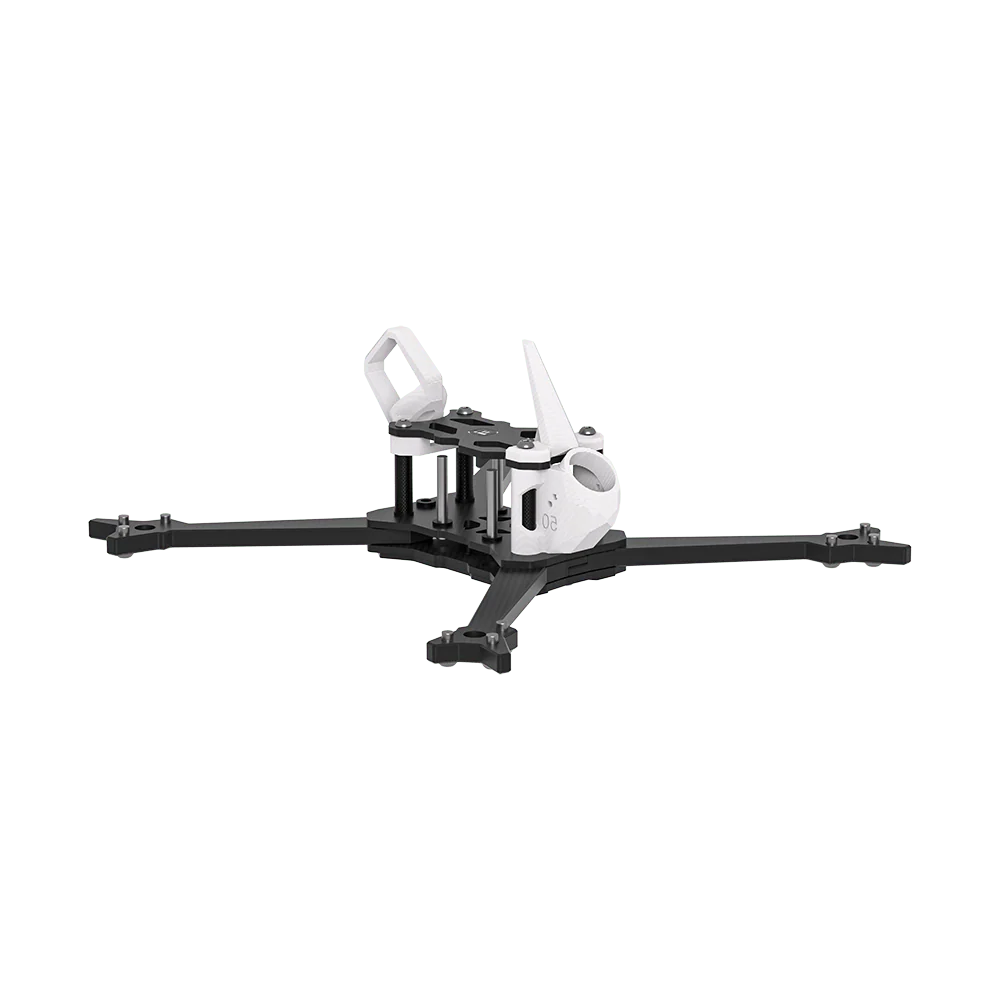

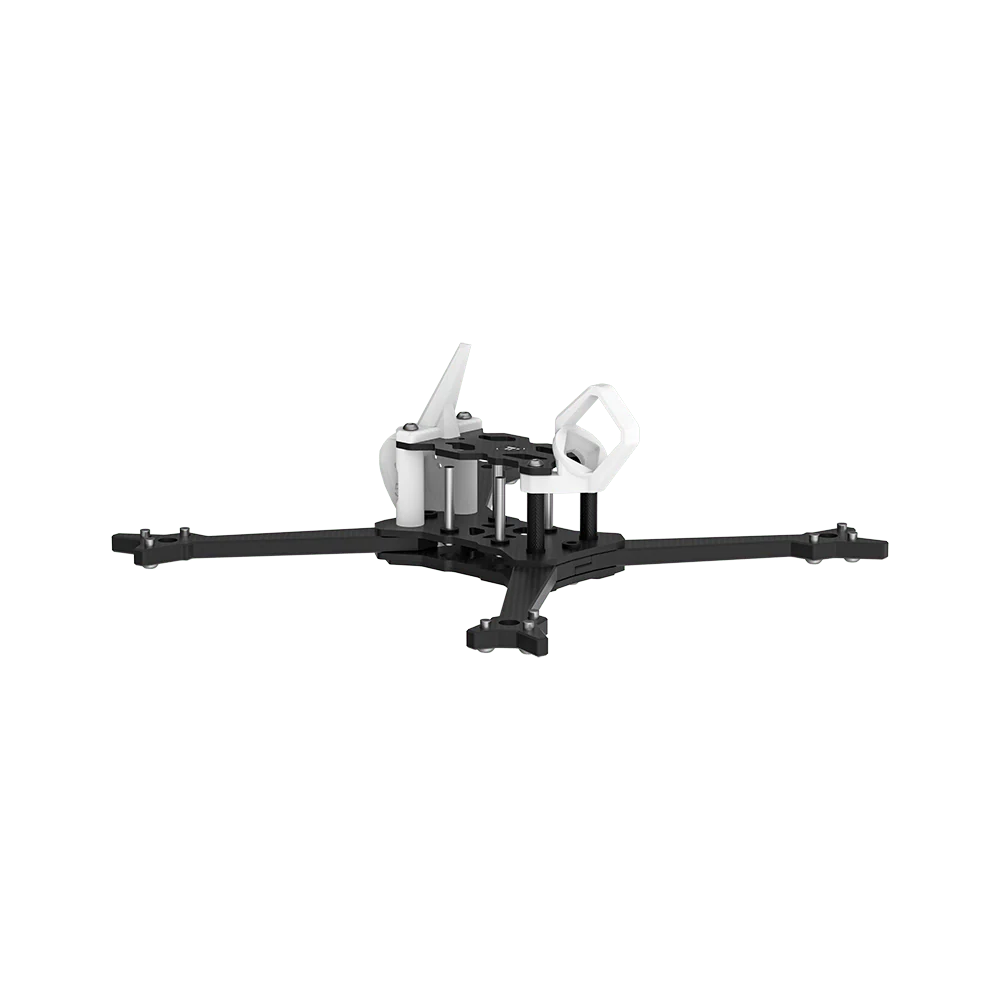

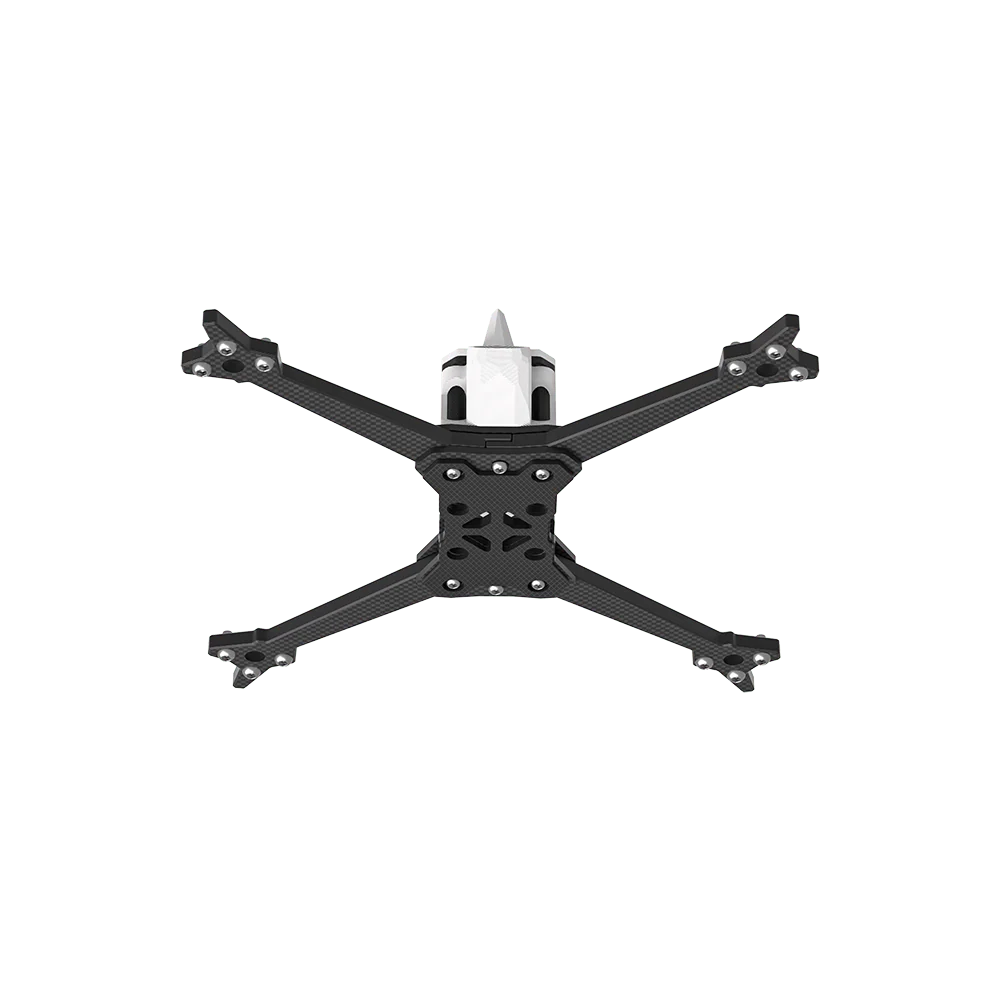

Mach R5 Ultra Race Frame Kit
The Mach R5 Ultra aims to provide racing pilots with a high-quality finished FPV frame that allows for DIY customization. Utilizing carbon plates and plastic components not only facilitates easy maintenance but also reduces the weight of the drone while enhancing overall stability.
Specifications
Product Name: Mach R5 Ultra Race Frame Kit
Wheelbase: 190mm
Frame Dimension: 169*161*34mm
Top Plate: 2mm
Arm Thickness: 5mm
Bottom Plate Thickness: 2mm
Upper Plate Thickness: 2mm
Max Flight Stack Height: 23mm
Max VTX Height: 23mm
FC Mounting: 20*20/Φ3 mm
VTX Mounting: 20*20/Φ3 mm
Motor Mounting: 16*16/Φ3mm
Weight: 92g
Compatibility: BLITZ Mini Force 600mW VTX, BLITZ RACE 5.8G 25mW VTX
Packing List
1 x Mach R5 Ultra Frame Kit (Non-assembled)
2 x Battery straps
1 x TPU Set
2 x Anti-slip Battery Pads
4 x Motor Wire Shield Tube
1 x Screw Bag
Tolerance Note
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
