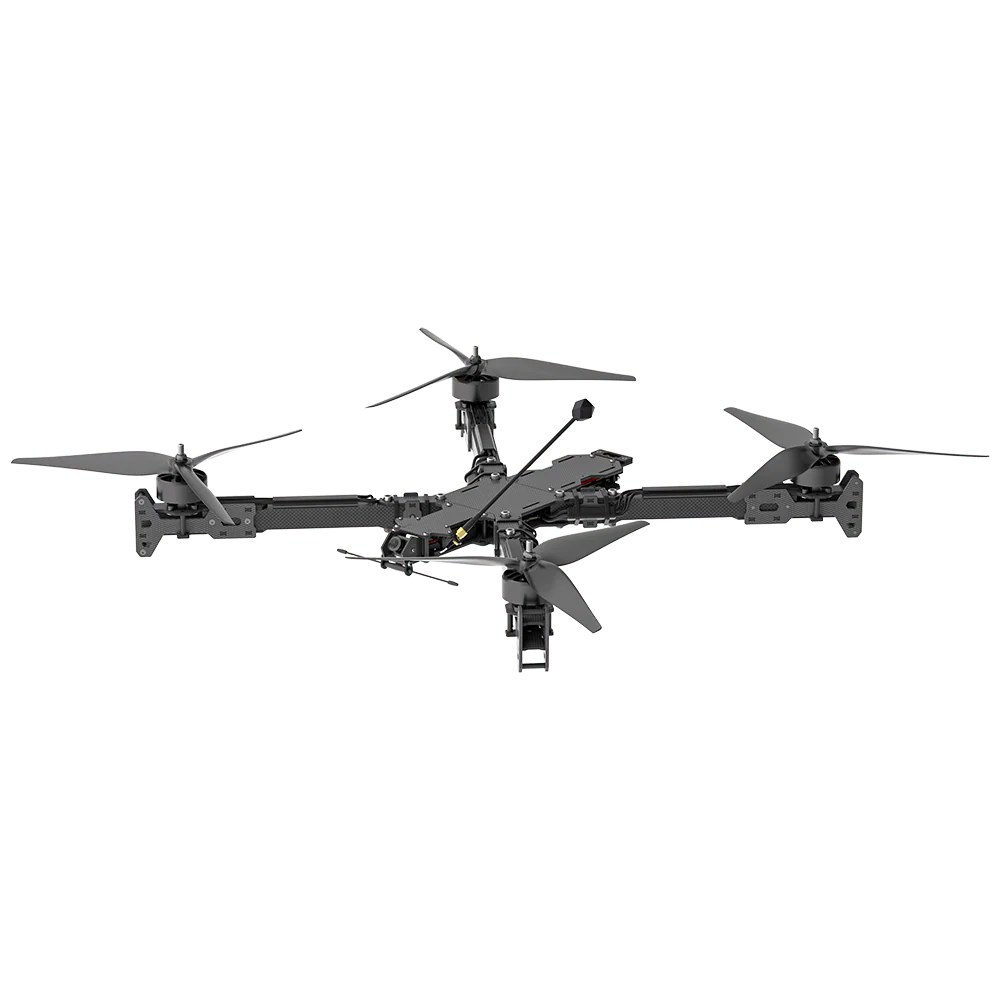

We're proud to announce the release of the X413 analog BNF, X413 8S Analog is a 13" BNF quadcopter that comes with the BLITZ Whoop VTX Video Transmission System, and HQ 13" 3-Blade propellers. The X413 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING 4214 motors, BLITZ H7 Pro Flight Controller, and the BLITZ E80 Pro 4-IN-1 ESC, which make this quad a must-have!

Specifications

Product Name: X413 Analog 13 inch

FC: BLITZ H7 Pro Flight Controller

ESC: BLITZ E80 4-IN-1 Pro ESC

Video Transmission: BLITZ Whoop 5.8G 2.5W VTX

Frame diagonal motor distance: 599mm

Motor: XING-E 4214 400KV motors

Prop: HQ 13X9X3 propellers

Weight: 1958±5g (Without Battery)

Dimensions (L×W×H)：425x425x26mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 6000 m

Max Hover Time: Approx. 18 mins (with 8S 5600mAh no load)

7mins (With 8S 5600mAh 4KG load)

5mins (With 8S 5600mAh 6KG load)

Max Wind Speed Resistance: Level 8

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antenna

VTX：

Product Name: BLITZ Whoop 5.8G 2.5W VTX

Output Power: PIT/25mW/400mW/1000mW/2500mW

Input Volts: 7-34V

Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA

Transmission: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Mounting Hole: 25*25/φ1.6mm

Weight: 32g

Dimensions: 50*30*16mm

Packing List:

1 x X413 8S Analog BNF

1 x Battery pad

1 x Antennas

2 x Propellers (Pair)

3 x Battery straps

1 x Screw Bag

Notice:

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

13 inch FPV Drones

X413 8S ANALOG

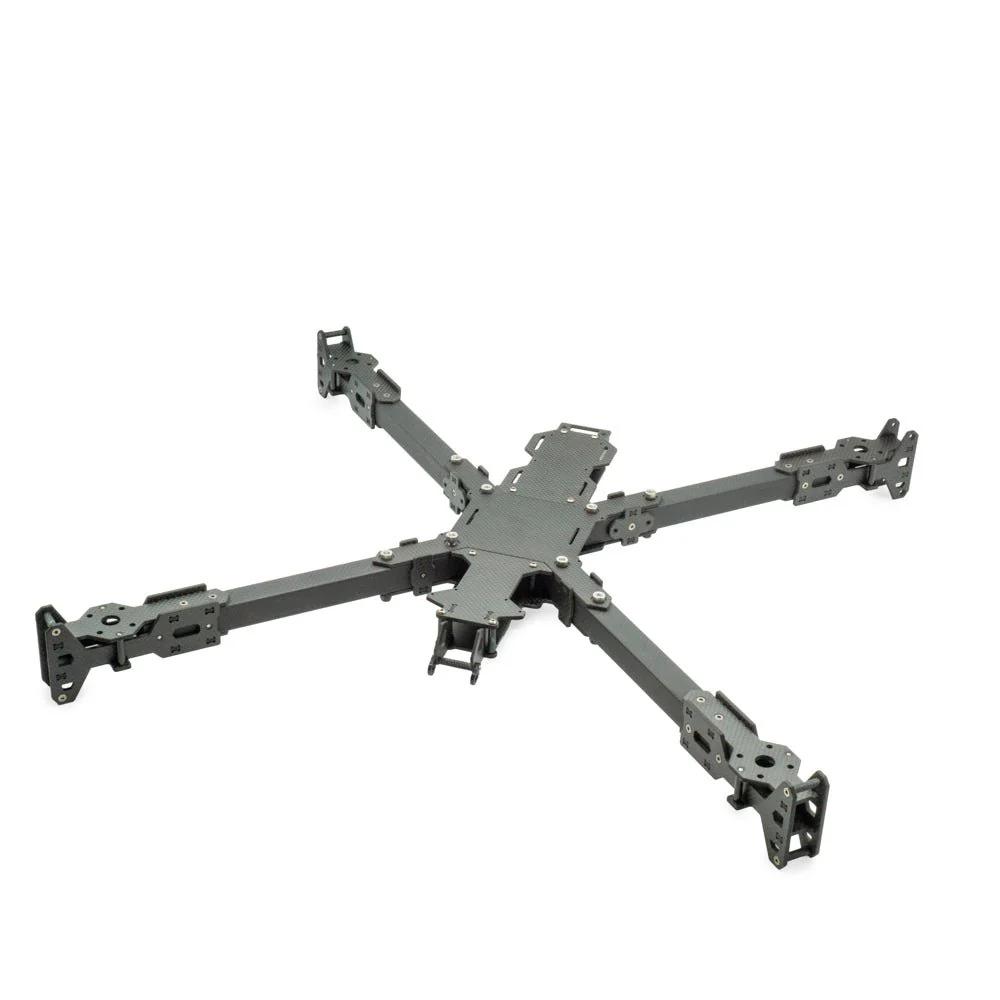

X413 Frame Kit

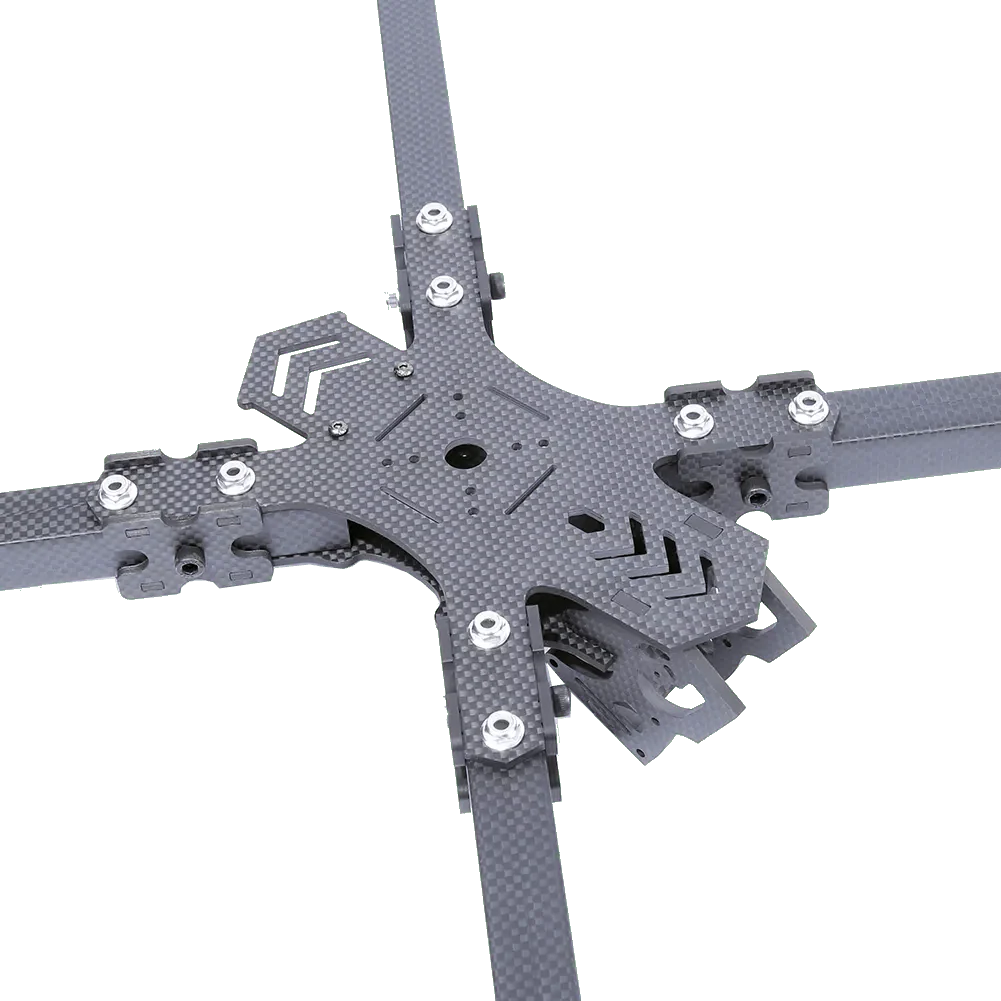

iXC13 X-CLASS Racing Frame Kit

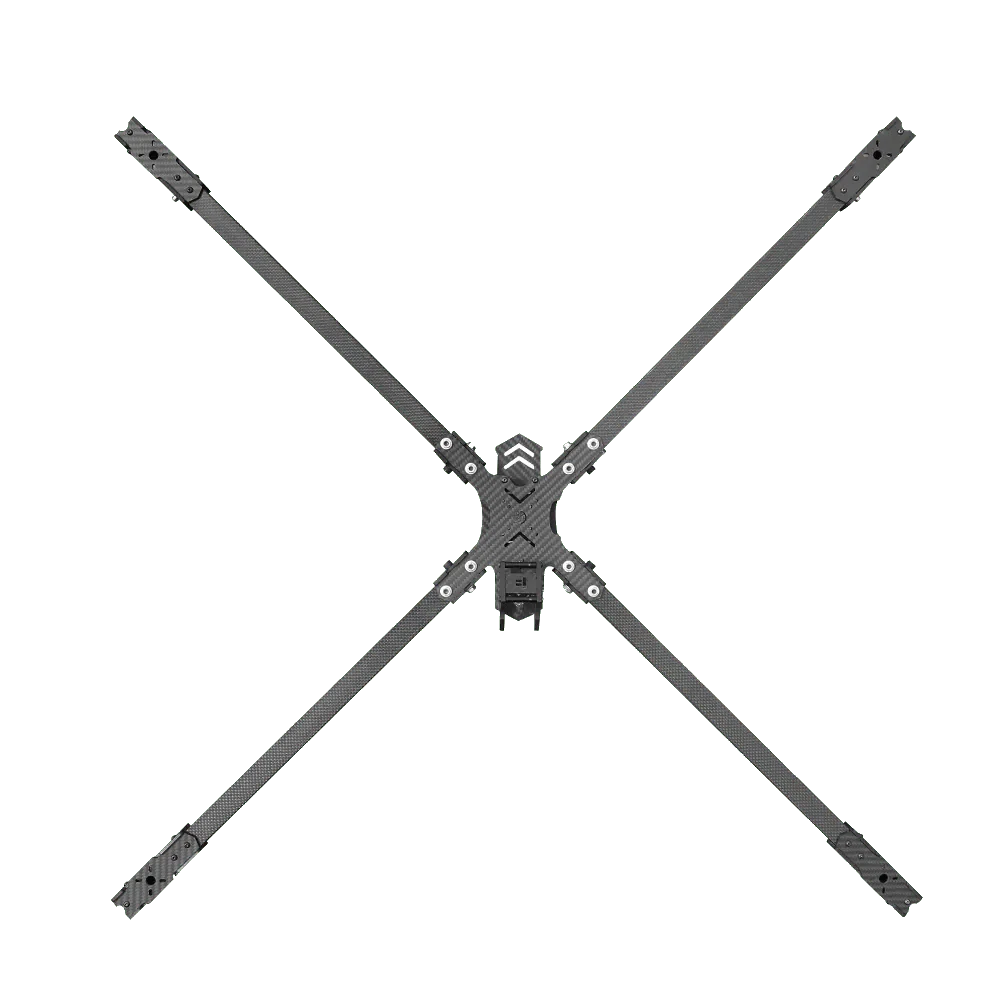

iXC15 X-CLASS Frame Kit
