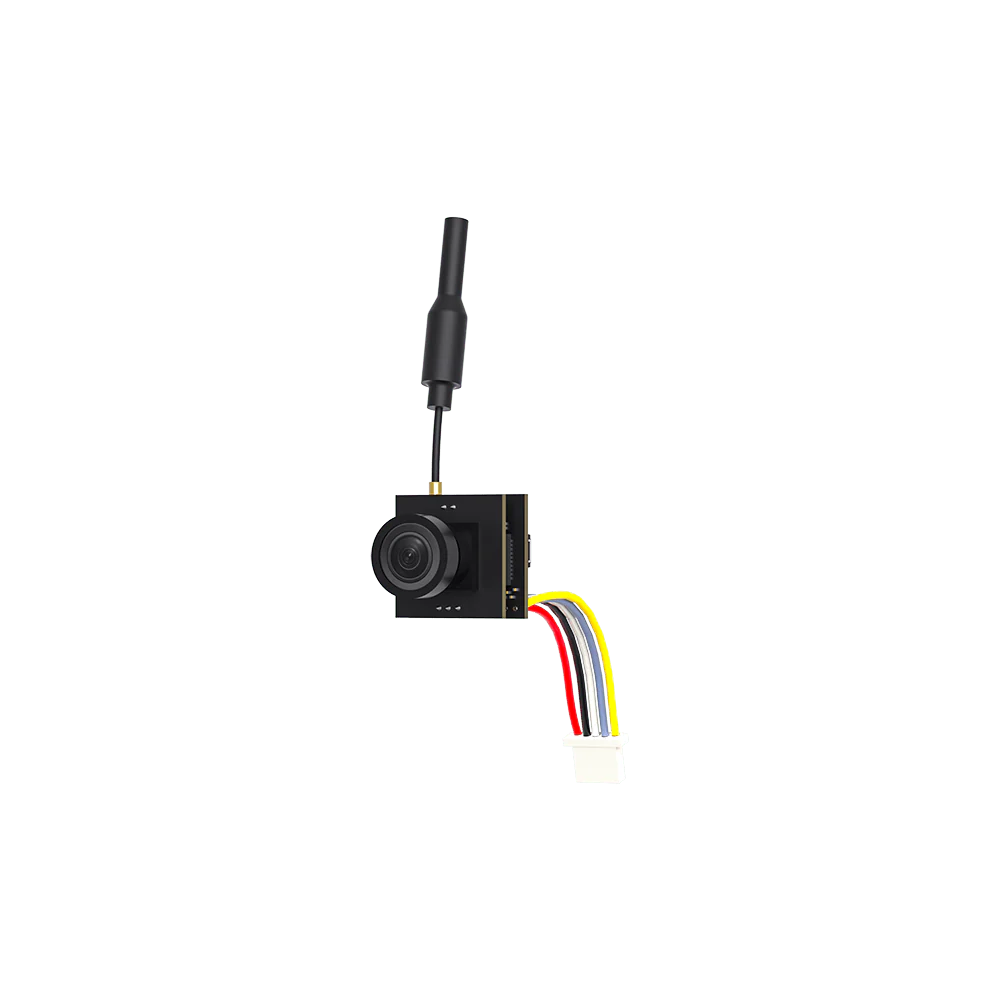

Introducing the Borg Electric Series' latest innovation: A new integrated camera transmission system designed for racing drones. This ultra-compact solution tips the scales at a mere 3.8 grams, delivering a substantial reduction in total drone weight. Additionally, the transmission power is adjustable, allowing for optimized performance tailored to your specific needs.

Tips

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

Specifications

VTX Specs:

Interface: IPEX

Power levels: PIT/25mW/100mW/150mW@5V 550mA

Dimensions: 15.5X15X20.5mm

Lightweight: 3.8g

VTX telemetry: IRC Tramp

Camera Specs:

Angle: 115° wide-angle lens

Focal length: 1.45mm

Image Sensor: 1/4″ CMOS Sensor

Resolution: 600TVL

Signal System: PAL/NTSC optional

Screen Format: 4:3

Input voltage: 5V DC

VTX instructions

Short press: Red(CH): The number of Red LED ﬂashing indicates the VTX channel. Short press to switch the Channel.

Press and hole for 2s: Blue(BAND): The number of LED ﬂashing indicates the BAND A-R. Short press to switch Band.

Press and hole for 2s again: Green(power): The number of LED ﬂashing indicates the VTX output power. Short press to change output power. A solid green light indicates PIT mode.

After the setting is complete, press and hole for 2s to exit the adjustment mode or if no key is pressed after 10 seconds during the adjustment, the system automatically exits the adjustment mode and saves the current Settings.

Packing List

1 x Borg 5.8G Micro VTX & CAM
